Organize flows with color, annotations, and groups

As you build more flows and their designs become more complex, the ability to organize your flows becomes more important. Flows have several features that enable organization on the canvas and folders to assist with organizing flows in the sidebar.

Colors

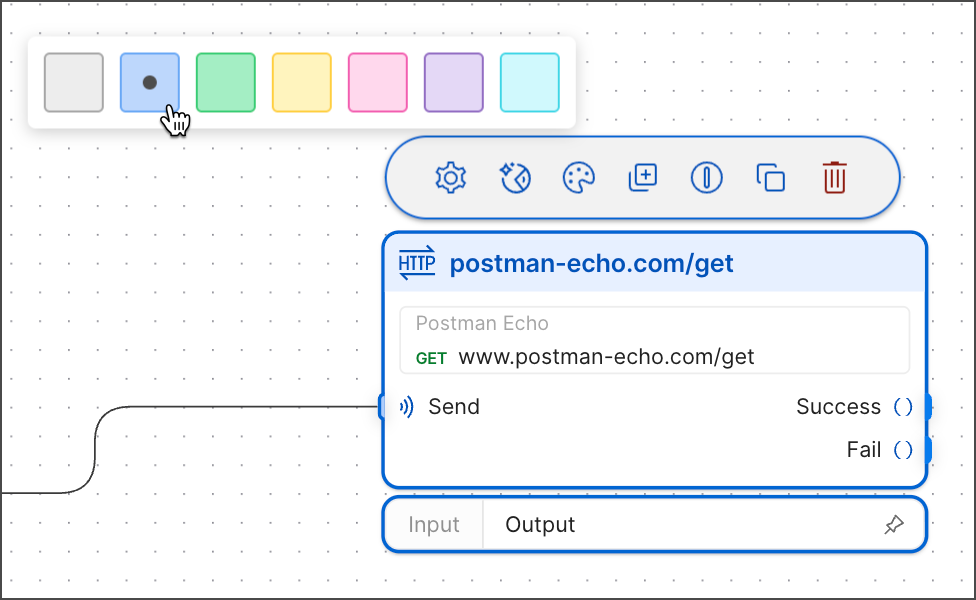

You can configure color highlighting for blocks. This makes individual blocks more distinguishable from other blocks around them. You can add a color by selecting a block, then click Style icon Change Color in the menu that appears. This also changes the color of connection lines extended from the block's output ports.

Colors

Annotations

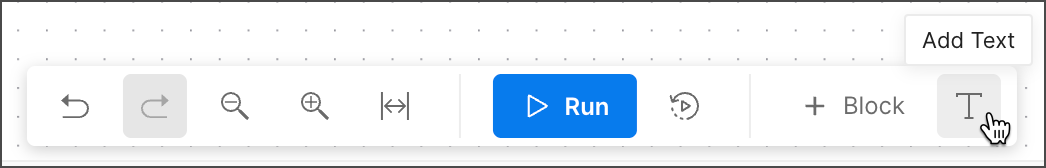

When collaborating with other people or putting a flow in a public workspace, it's helpful to add directions directly on the canvas. This helps explain how to use the flow and what certain blocks are doing. Click Add Annotation icon Add Text in the toolbar to add an annotation. Selecting text in an annotation opens the text formatting menu which has bold, italics, and heading options. If you copy a link, then highlight some text and paste the link, the highlighted text becomes a hyperlink.

Annotations

Groups

You can group blocks and annotations together. The group can then be named, given a color, resized, and have blocks added or removed from it. This can be useful when several blocks may be involved in performing a task such as sending an email.

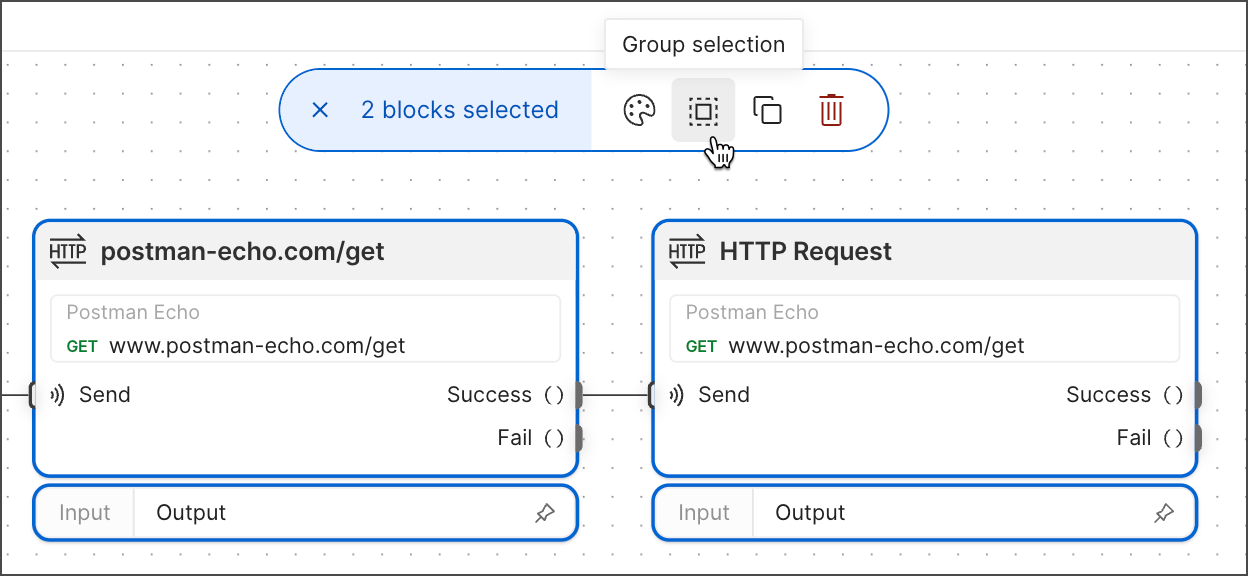

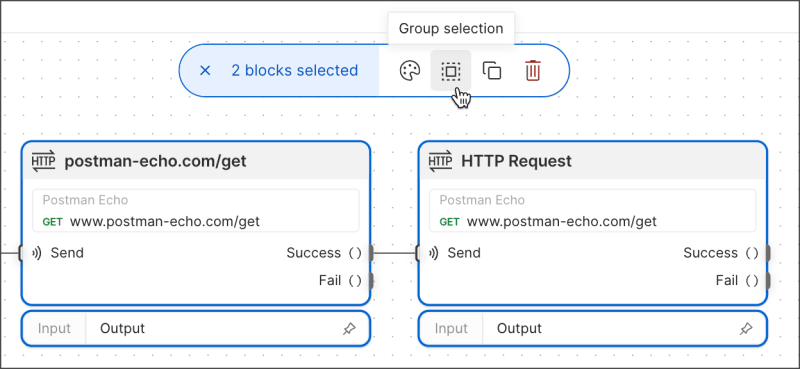

To access the grouping menu, hold the Shift key and drag the cursor around a set of blocks. You can also select and hold or Ctrl while selecting the blocks you want to add. Selecting the file icon will create a group.

Grouping

Folders

You can organize flows into folders in the sidebar. Using folders helps streamline navigation and maintain a cleaner workspace. The following procedures guide you through setting up and managing folders to keep your flows organized.

Create a folder

In the Flows sidebar, select Create a new folder or flow Create a new folder or flow > Create folder New folder. An empty folder named New Folder appears in the sidebar.

Add a flow to a folder

In the Flows sidebar, you can drag and drop an existing flow into a folder.

To create a new flow in an existing folder, hover over the folder and select View more actions View more > Create flow module or Create action.

Rename a folder

In the Flows sidebar, hover over a folder and select View more actions View more > Rename. Enter a new name for the folder.

Add a folder to an existing folder

In the Flows sidebar, hover over a folder and select View more actions View more > Create folder. You can also drag and drop a folder into another folder.

Delete a folder

In the Flows sidebar, hover over a folder and select View more actions View more > Delete. You'll be prompted to confirm the deletion. The deleted folder's contents will move up one level to the containing folder or the sidebar.
