Using Postman Interceptor

Postman Interceptor is a Chrome extension that acts as a browser companion to Postman. Interceptor enables you to sync cookies from your browser to Postman and capture network requests directly from Chrome, saving them to your history or a Postman collection.

Once Interceptor is running in Chrome, you can start a debug session, which is a time-bound session of traffic capture. You can start, pause, and stop an interceptor debug session, then later start another one. Each debug session is logged in the History tab, and displays the total session time and all traffic captured. You can also send requests and responses to a collection, and save cookies to the Postman cookie jar.

Interceptor is only available on the Postman desktop app.

Contents

• Installing Interceptor
• Using Interceptor
  • Running the Interceptor debug session
  • Viewing the Interceptor debug session results
  • Syncing cookies
• How it works
  • Troubleshooting tips
• Security
  • Adding a custom encryption key in the UI
  • Adding a custom encryption key with the pm API
• Updating Interceptor
• Using Interceptor with Postman's Chrome app

Installing Interceptor

To get started, install Postman Interceptor:

1. Download Interceptor in the Chrome Web Store. If you already have the extension, ensure it is version v0.2.26 or later.

2. In the Postman app, select the Capture requests and cookies icon in the Postman footer.



3. On the Capture requests and cookies window, select the Via Interceptor tab.



4. Select Install Interceptor Bridge to download the Bridge, an independent executable that facilitates communication with the Interceptor.

   If you're on Windows or Linux, Postman will take care of everything for you. If you're on macOS, you'll be prompted to install NodeJS if it's not already installed on your computer.

5. Confirm Interceptor is ready to use by checking that the Connected status in the upper right is green. You can now capture requests from your browser and cookies from any domain to use in Postman.

Using Interceptor

After Interceptor is connected, you can then start an Interceptor debug session, which is a time-bound session where captured traffic is saved in an entry in the History tab, and optionally into a collection. Once a proxy debug session is started, you can then pause, restart, or stop it. Before you start the session, you can select what traffic you want to go into it.

You can only have a single proxy or interceptor debug session running at the same time.

1. Go to the Via Interceptor tab of the Capture requests and cookies window.

2. Select Capture Cookies if you want to capture cookies in addition to requests during the debug session.

3. Requests will be saved in a debug session in the History tab in the sidebar. Select Save requests to a collection and select a collection from the list to also save the requests there.

4. Under URL must contain, specify a string or regular expression, and only matching URLs will be captured.

5. Under Methods, select one or more methods to capture only those methods.

6. Select Start Capture.

Running the Interceptor debug session

While your Interceptor session is running, the Interceptor Debug Session window will show captured traffic as you use the Chrome browser.

There are several controls you can use to limit, organize, and investigate traffic as it is captured:

• Select the name Interceptor debug session and enter another name to change the window name.
• The Configure incoming requests controls at the top of the window enable you to limit captured traffic. Select items from Methods and URL to limit the traffic. These controls are similar to the ones you set initially, but they limit what is being captured instead of what is going through Interceptor.
• You can select or unselect Capture Cookies to toggle if cookies are collected.
• Select the Requests tab to view incoming requests and responses, or Cookies to see captured cookies.
• Use the search box to look for specific requests.
• Select > next to a request to expand it and see more details.
• Select the URL in the URL column to open the request as a new API request in Postman.

When you select one or more requests from the list on the Requests tab, you can use the following controls:

• - delete the request.

When you select one or more cookies from the list on the Cookies tab, you can use the following controls:

• + Add to Cookie Jar - add the request to the Postman cookie jar.

• - delete the cookie.

The bottom right corner shows the total time of the capture session, along with the total size of captured traffic. If you want to temporarily stop the capture session, select the Pause button, and select Resume to restart it.

When you're done with your debug session, select Stop in the lower right corner. This will finish the debug session, and results of the debug session will be saved in the History tab.

After stopping the session, the Interceptor is still connected. Select the Capture requests and cookies icon in the Postman footer, and you can start another debug session.

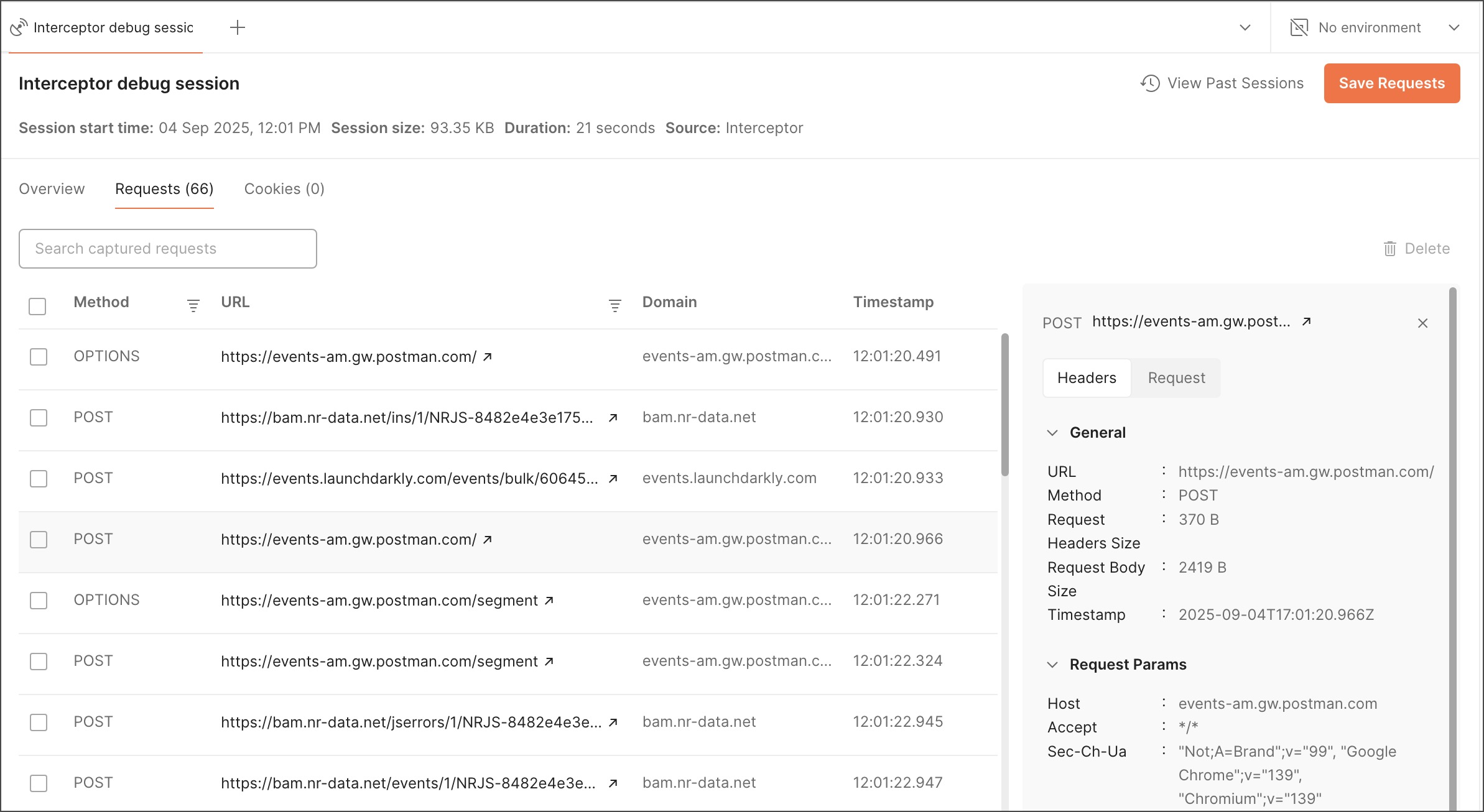

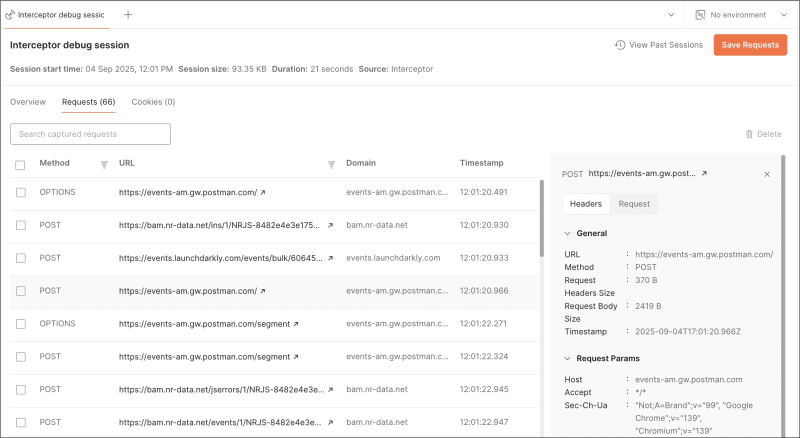

Viewing the Interceptor debug session results

After completing a debug session, a transaction of it is located in the History tab, named Interceptor debug session.

When you open a saved debug session, the top header displays the session start time, total size, duration, and source.

The Overview displays summary graphs of the traffic captured in the session. You can select graphs summarizing traffic by method, domain, data mode, or return status code.

The Requests and Cookies tabs display requests, responses, and cookies, similar to the same tabs available during a capture session. The same options for searching, expanding, saving, and deleting items described in Step 4 are available. You can also use the controls at the bottom of the table to limit the number of items per page, and navigate through the pages of results.

You can rename an Interceptor debug session by selecting the name at the top of the window and entering a new name. Select next to the debug session name to rename or delete the session.

Syncing cookies

You can retrieve cookies from any domain and use them in your Postman requests by enabling Capture cookies. You can then add one or more domains in the Interceptor extension to capture cookies from that domain.

Interceptor will sync all cookies for that domain from the browser. It will also sync cookies for all subdomains of a specified domain.

For example, adding the domain example.com will also sync cookies from m.example.com.

To sync cookies for the domain only, you can add https:// in front of the domain, such as https://example.com.

Interceptor keeps cookies for a fixed set of domains in sync, updating Postman from the browser when cookies update, including deletions. Due to this, you can use browser sessions to make API calls in Postman. You will not be able to save these to Postman’s history.

You can remove a domain at any time by selecting X next to the domain. This will prevent future cookie updates from being synced, but it won’t delete cookies that have already been synced.

You can learn more about managing cookies in Postman in Cookies.

How it works

Interceptor works by leveraging a Google Chrome feature and the installation process differs according to your operating system.

Postman's native app requires Chrome's Native Messaging feature. This requires an independent executable and will be installed on your machine.

Your installation may include the following options:

• [macOS only] Install NodeJS: If Postman detects that you don't have the NodeJS binary available, you'll be prompted to install it. Postman will then download the latest stable version of Node.

• [Windows only] Add a registry key: A com.postman.postmanapp key is added to HKCU\Software\Google\Chrome\NativeMessagingHosts\. The key points to the location of a JSON file (the manifest).

• Add a manifest file: This is a JSON file (whose structure is defined by Native Messaging) that gives Chrome the absolute path of the executable that the Interceptor extension can talk to. This file will be installed in a location dependent on your operating system:

  • macOS: /Users/<username>/Library/Application Support/Google/Chrome/NativeMessagingHosts/com.postman.postmanapp.json
  • Windows: %USERPROFILE%\.postman\InterceptorBridge\com.postman.postmanapp.json
  • Linux: ~/.config/google-chrome/NativeMessagingHosts/com.postman.postmanapp.json

• Add an executable: This is a new process started by Chrome when required by the Interceptor extension. For Windows and Linux, this is a self-contained binary. For macOS, this is a JavaScript file. This file must be executable. This executable will be installed in a location dependent on your operating system:

  • macOS: $HOME/.postman/InterceptorBridge
  • Windows: %USERPROFILE%/.postman/InterceptorBridge
  • Linux: $HOME/.postman/InterceptorBridge

Troubleshooting tips

You can find the current status of your Interceptor integration by looking at the upper right of the Capture requests and cookies window:

• Connected: You can proceed with using Interceptor.
• Not connected: Ensure Interceptor is installed correctly.
• Dependencies not installed: Postman will walk you through how to install the required dependencies.

If you encounter errors during installation or download, check out the following steps to resolve them:

• CHROME_NOT_INSTALLED: Check if Chrome is installed and a NativeMessagingHosts folder exists at the following location:

  • macOS: ~/Library/Application Support/Google/Chrome/NativeMessagingHosts
  • Linux: ~/.config/google-chrome/NativeMessagingHosts
  • Windows : HKEY_CURRENT_USER\SOFTWARE\Google\Chrome\NativeMessagingHosts

  If you are using a different flavor of Chrome, such as Chromium, Brave, or Edge:

  1. Create the NativeMessagingHosts directory in the location above.
  2. Install the Interceptor Bridge (refer to Installing interceptor).
  3. Copy InterceptorBridge into the above NativeMessagingHosts directory.

• INTERNET_CONNECTIVITY:

  • Check your internet connection.
  • If you are sitting behind a firewall check your inbound and outbound policies.
  • If you are using a proxy, check that it is properly configured.

• FILE_PERMISSIONS_REQUIRED:

  • Verify that you have permissions to create the .postman/InterceptorBridge folders.
  • Verify that you have permissions to delete, write, and execute in the path .postman/InterceptorBridge.
  • [macOS only] Verify that you have a ~/Downloads folder and write permissions for it.
  • If the above steps are unsuccessful, close Chrome and Postman before retrying the installation.

• [Windows] REGISTRY_ACCESS_NEEDED:

  • Verify that you have permissions to add a registry key.
  • Verify that C:\Windows\System32 is present in the PATH (a system environment variable) so that reg queries can be executed.

If you are unable to use the integration after completing the guided installation, you'll want to check the following items:

• [macOS] Node is properly installed: Node should be installed and available at /usr/local/node or /usr/local/bin/node, or you have the environment variable NVM_BIN set.
• Manifest file location: The manifest file (com.postman.postmanapp.json) is present, has the correct extension ID (aicmkgpgakddgnaphhhpliifpcfhicfo), and the correct path to the executable file.
  • If this is missing, delete the following directory and restart the installation process:
    • macOS / Linux: $HOME/.postman
    • Windows: %USERPROFILE%\.postman\
• Executable: The executable that the manifest points to should exist and be approximately 40MB for Windows/Linux or 33KB for macOS.
  • If this is missing, delete the following directory and restart the installation process:
    • macOS / Linux: $HOME/.postman
    • Windows: %USERPROFILE%\.postman\

For macOS, the NodeJS downloader should be saved to your ~/Downloads directory.

For Windows, if you see an installation error in Postman, close Chrome and retry before repeating the installation process.

If the aforementioned troubleshooting steps do not fix the problem, you may need to remove all of Interceptor's dependencies (such as the manifest file, Interceptor Bridge, and for Windows users, the registry key). To do so, open Postman and navigate to View > Developer > Show DevTools (Current View). Enter pm.interceptorInstaller.reset() to remove all present Interceptor dependencies. You can then continue installation from step 3.

If any dependencies cannot be removed due to permission issues, you’ll be prompted to delete them manually.

If you are unable to resolve an INTERNET_CONNECTIVITY error, you can manually install Interceptor:

• macOS/Linux:

  • [macOS-only] Node.js (>v6.0.0) should be installed and available at /usr/local/node or /usr/local/bin/node, or you have the environment variable NVM_BIN set.
  • Install the bridge for macOS or Linux.
  • Run the script install_host.sh.
  • After executing the script, check the following items:
    1. Verify the InterceptorBridge file exists in $HOME/.postman.
    2. Verify the manifest file com.postman.postmanapp.json exists at ~/Library/ApplicationSupport/Google/Chrome/NativeMessagingHosts for macOS or ~/.config/google-chrome/NativeMessagingHosts for Linux. Check that it has the correct extension ID aicmkgpgakddgnaphhhpliifpcfhicfo, and the correct path $HOME/.postman to the executable file InterceptorBridge.

• Windows:

  • Install the bridge for Windows.
  • Run the script install_host.bat.
  • After executing the script, check the following items:
    1. Verify the InterceptorBridge.exe file exists at %USERPROFILE%\.postman\.
    2. Verify in this path HKEY_CURRENT_USER\SOFTWARE\Google\Chrome\NativeMessagingHosts that the manifest file com.postman.postmanapp.json exists with the correct extension ID aicmkgpgakddgnaphhhpliifpcfhicfo and the correct path %USERPROFILE%\.postman\ to the executable file InterceptorBridge.exe.

Note:

• To run the script depending on your OS, you may need to double-click or execute the installer script in a shell. Users on macOS or Windows may see a security warning. For example, to override the security on macOS, you may need to right-click the file and select Open.

• If you have installed Postman app with snap (on Linux machines), Interceptor will not connect and you must reinstall the Postman app outside of snap.

Security

The communication between Interceptor and Postman is automatically encrypted. You can make that communication even more secure by adding a custom encryption key.

Adding a custom encryption key in the UI

1. In the Postman app, select the Capture requests and cookies icon in the Postman footer. Then in the Capture requests and cookies window, select the Via Interceptor tab.

2. To the right of the green Connected status, click the lock icon.



3. Enter an alphanumeric key of 10 or more characters and select Save key.

4. Open your browser and select the Interceptor extension. Select the lock icon, enter the same key, then select Save key. Both the app and browser will confirm the Connection is secure.

Adding a custom encryption key with the pm API

You can also update the default encryption key by utilizing the pm API. To do so, open Postman and select View > Developer > Show DevTools (Current View) > Console, then enter pm.interceptorBridge.setKey("<your key here>").

For the Interceptor extension, first enable Developer mode in Chrome extensions. You can then right-click on the Interceptor icon in your browser, select Inspect Popup > Console. Enter the command pm.interceptorBridge.setKey("<your key here>") again here. All communication through this channel will now be encrypted using your own key.

Updating Interceptor

To update Interceptor:

1. View your existing Chrome extensions by selecting the menu icon at the top right of the Chrome app > More Tools > Extensions.

2. Select to turn on developer mode in the top-right corner.

3. Select Update on the top left to update your extensions.

Using the Interceptor with Postman's Chrome app

Postman's Chrome app is deprecated and no longer offers feature parity with Postman native. It is highly recommended that you switch to Postman native.

The Postman Chrome app's Interceptor functions as a proxy to capture HTTP and HTTPS requests. You can use Interceptor to capture requests made by your Chrome browser and send them to your Postman app's history.

You can filter requests according to the URL by selecting the Interceptor icon in your browser, then applying a filter under Filter requests.

You can use Interceptor to create a Postman collection for a web app or to debug your APIs. You can also use the Postman Chrome app in tandem with Interceptor to make and capture requests.

To use Interceptor with Postman Chrome:

1. Install Postman from the Chrome Web Store.
2. Install Interceptor from the Chrome Web Store.
3. Open Postman, click on the Interceptor icon in the toolbar, and toggle to On.

You can then browse your app or website and monitor requests as they stream in to your Postman history.
