Microsoft AD FS

Prerequisites

Before you configure Microsoft Active Directory Federation Services (AD FS) to work with Postman Single sign-on (SSO), you must have:

  • An Active Directory instance where all users have an email address attribute.
  • A SSL certificate from the AD FS server.
  • A server that runs Microsoft Server 2012 or 2008. Note: This guide uses screenshots from Server 2012R2,

but similar steps should be possible in other versions.

After you meet these basic requirements, install AD FS on your server.

To configure and install AD FS, see Deploy and configure AD FS in the Microsoft Knowledge Base.

Configuration

Follow the steps below to configure Microsoft AD FS to work with Postman SSO.

Step 1 - Create an AD FS authentication scheme in Postman.

To create this scheme authentication, see Configuring SSO for a team.

After creating the scheme, collect the values for these fields in the Team page.

Fields AD FS equivalent
Assertion Consumer Service URL SAML 2.0 SSO service URL
Encryption Certificate Token encryption certificate

Step 2 - Add a Relying Party Trust.

Relying Party Trust (RPT) defines the connection between AD FS and Postman.

To add a Relying Party Trust:

Select the Relying Party Trusts folder from "AD FS Management".

On the Actions sidebar, click "Add Relying Party Trust" to start the configuration wizard for a new trust.

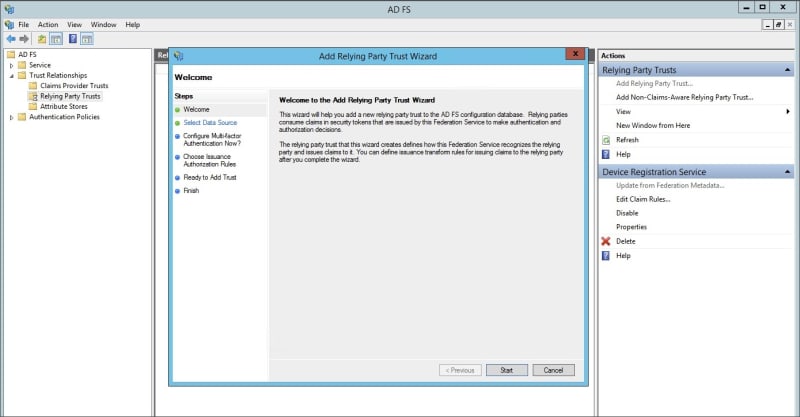

Click the Claims aware button in the Welcome screen and then click the Start button.

relysing party trust

In the Select Data Source screen, select the last option, "Enter Data About the Party Manually".

select data source

Enter a "Display Name" that you'll recognize later. You can optionally add notes.

display name

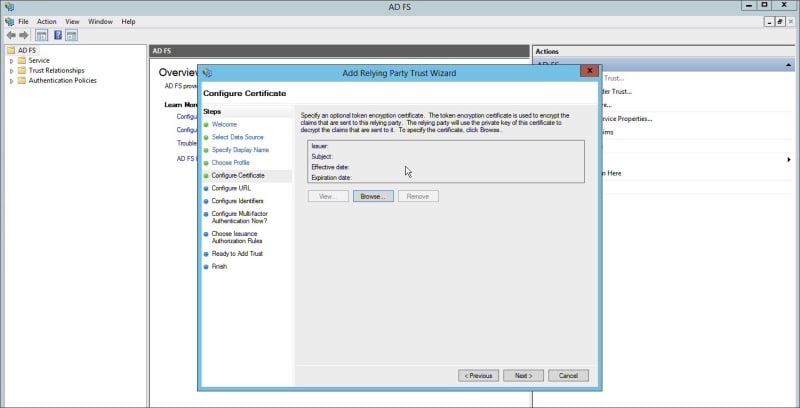

Upload the encryption certificate in the Team page or use the default certificate settings.

encryption cert

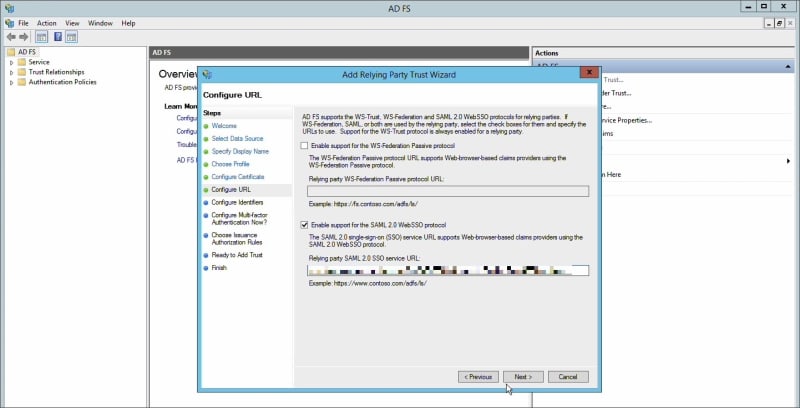

Check the box labeled "Enable Support" for the SAML 2.0 WebSSO protocol.

Collect the service URL (ACS URL) from the Team page.

acs url

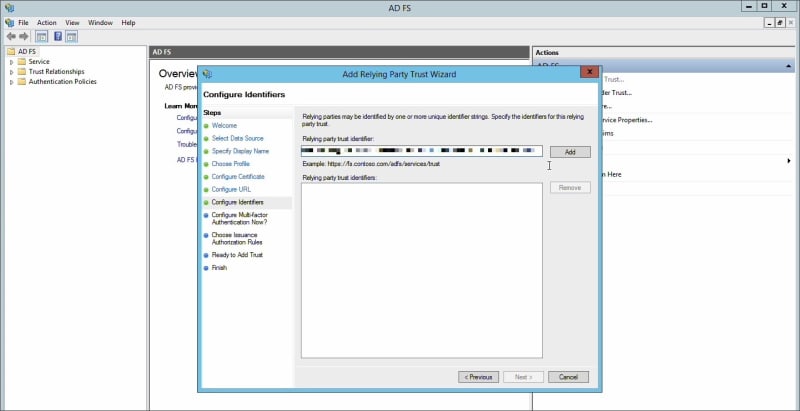

Add this Relying party trust identifier: https://identity.getpostman.com.

replying party trust identifier

Select "Permit everyone".

permit everyone

In the next two screens, the wizard displays an overview of your settings.

In the final screen, use the Close button to exit and open the "Claim Rules" editor.

Step 3 - Create claim rules.

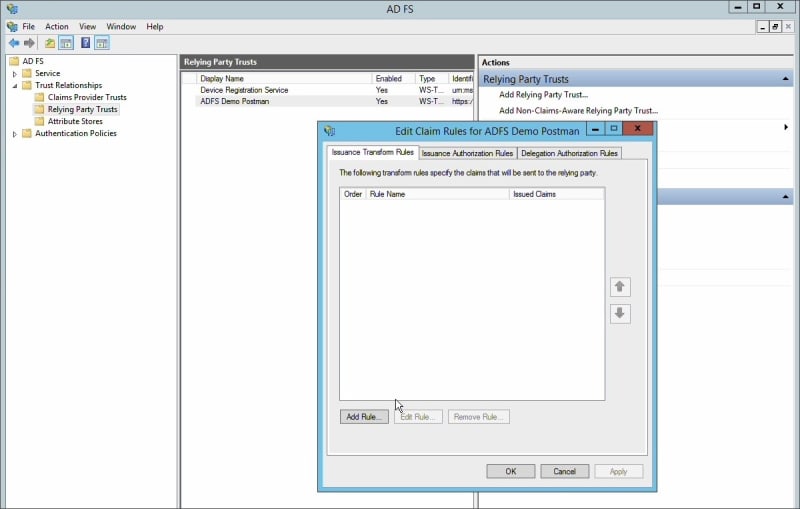

After the relying party trust has been created, you can create the claim rules.

claim rules

To create a new rule:

Click "Add Rule". Then create a "Send LDAP Attributes as Claims" rule.

add rule

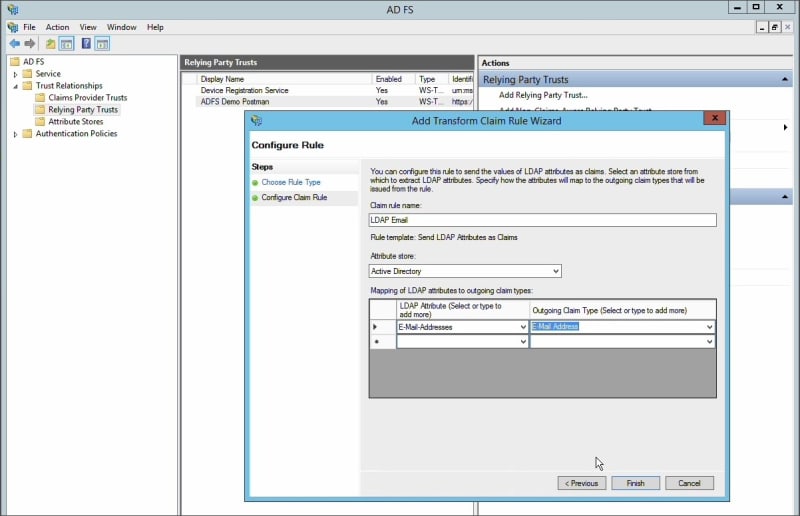

Using the Active Directory as your attribute store, perform these actions:

In the LDAP Attribute column, select "E-Mail Addresses". In the Outgoing Claim Type, select "E-Mail Address".

active directory

Click the Finish button to save the new rule.

Click "Add Rule" to create another new rule and select "Transform an Incoming Claim" as the template.

incoming claim

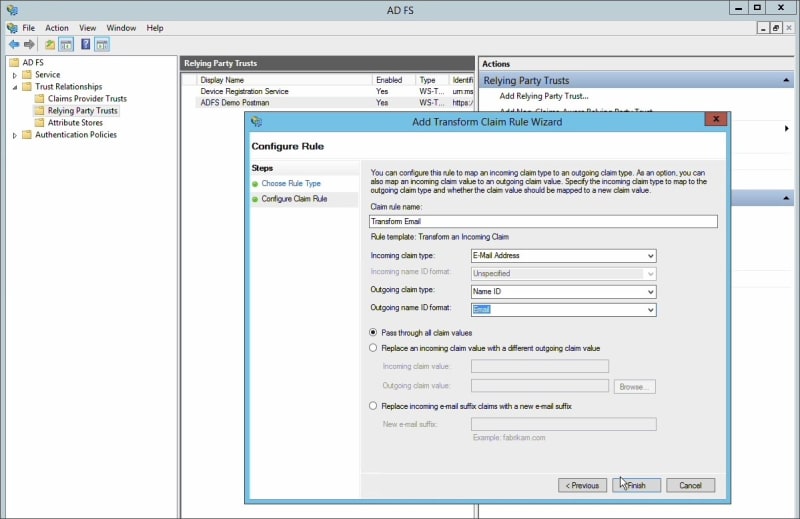

In the next screen perform these actions:

In "Incoming Claim Type", select "E-mail Address".

In "Outgoing Claim Type", select "Name ID".

In "Outgoing Name ID Format", select "Email".

Note: Use the default setting: "Pass through all claim values".

pass through claim values

Click the Finish button to create the claim rule.

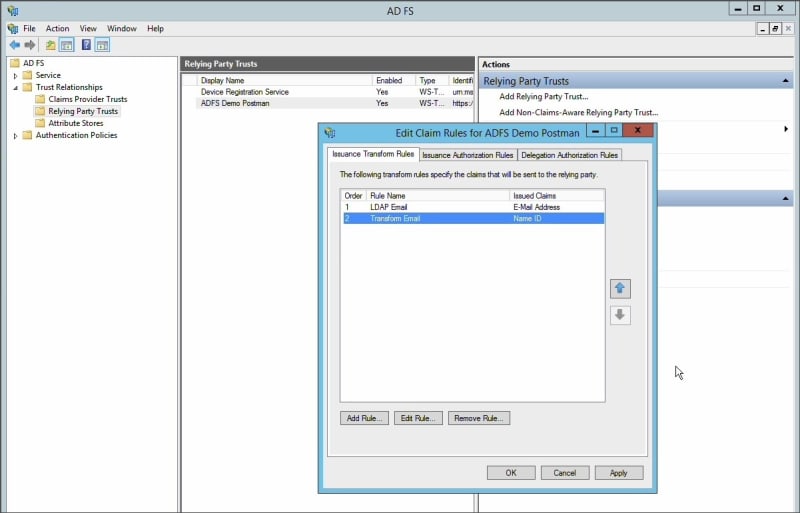

You should see two transform rules. Click "Edit Claim Issuance Policy" to confirm.

edit claim issuance

Step 4 - Adjust the trust settings.

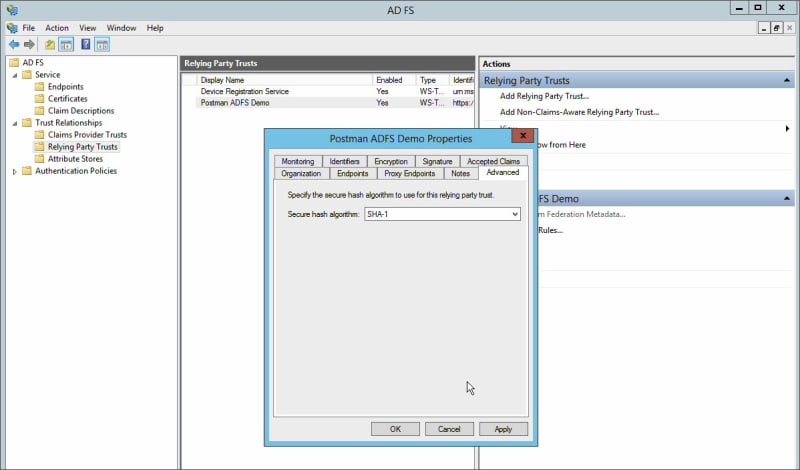

To adjust the trust settings, select "RPT" and then select "Properties" in the Actions sidebar.

In the Advanced tab, specify "SHA-1" as the secure hash algorithm.

adjusting trust

Step 5 - Submit Identity Provider details to Postman.

After the setup, you must submit your Identity Provider's details to Postman.

Download the FederationMetadata.xml. You can generally find this file at: https://<Federation Service name>/FederationMetadata/2007-06/FederationMetadata.xml

Collect the Identity Provider Single Sign-On URL, Identity Provider Issuer, and X.509 Certificate from the metadata file and enter these values in the Team page in the AD FS Identity Provider Details dialog.

Step 6 Enable the RelayState parameter on your ADFS servers.

  • For ADFS 2.0, open the following file in a text editor:
%systemroot%\inetpub\adfs\ls\web.config
  • For ADFS 3.0, open the following file in a text editor:
%systemroot%\ADFS\Microsoft.IdentityServer.Servicehost.exe.config

In the <microsoft.identityServer.web> section, add a line for useRelyStateForIdpInitiatedSignOn as follows, and save the change:

<microsoft.identityServer.web>    ... <useRelayStateForIdpInitiatedSignOn enabled="true" />    ...</microsoft.identityServer.web>
  • For ADFS 2.0, run IISReset to restart IIS.
  • For both platforms, restart the Active Directory Federation Services (adfssrv) service.

If you're using ADFS 3.0 you only need to do the above on your ADFS 3.0 servers, not the WAP servers.

Ensure that <useRelayStateForIdpInitiatedSignOn enabled="true" /> has been added at microsoft.identityServer.web, then generate a URL encoded string from the relay state and the Entity ID as follows.

  • There are two pieces of information you need to generate the RelayState URL. The first is the relying party's identifier, which can be found in the AD FS Management Console. View the Identifiers tab on the relying party's property page.
  • The second part is the actual RelayState value that you need to send to the relying Party. The example below uses the relying party identifier of https://identity-example.getpostman.com and the relay state of 35ef7ab89gh99hh00.

Starting values:

  • RPID: https://identity-example.getpostman.com
  • Relay State: 35ef7ab89gh99hh00

You are advised to use a trusted URL encoder to generate the encode values.

URL encode each value.

  • RPID: https%3A%2F%2Fidentity-example.getpostman.com
  • Relay State: 35ef7ab89gh99hh00

Merge the URL encoded values with the string below, and URL encode the whole string.

  • String: RPID=<URL encoded RPID>&RelayState=<URL encoded RelayState>
  • String with values: RPID=https%3A%2F%2Fidentity-example.getpostman.com&RelayState=35ef7ab89gh99hh00
  • URL encoded string: RPID%3Dhttps%253A%252F%252Fidentity-example.getpostman.com%26RelayState%3D+35ef7ab89gh99hh00

Take the final string and append it to the IDP initiated sign-on URL.

  • An example IDP initiated sign-on URL would have the following structure: https://adfs.contoso.com/adfs/ls/idpinitiatedsignon.aspx
  • Final URL: https://adfs.contoso.com/adfs/ls/idpinitiatedsignon.aspx?RelayState=RPID%3Dhttps%253A%252F%252Fidentity-example.getpostman.com%26RelayState%3D+35ef7ab89gh99hh00

Navigate to the final URL in the browser on first time login from Azure AD, which will enable setting the relay state and allow seamless SSO login in future.
