The Output block accepts information from other blocks and creates a visualization of that information. You can select from several visualization types.

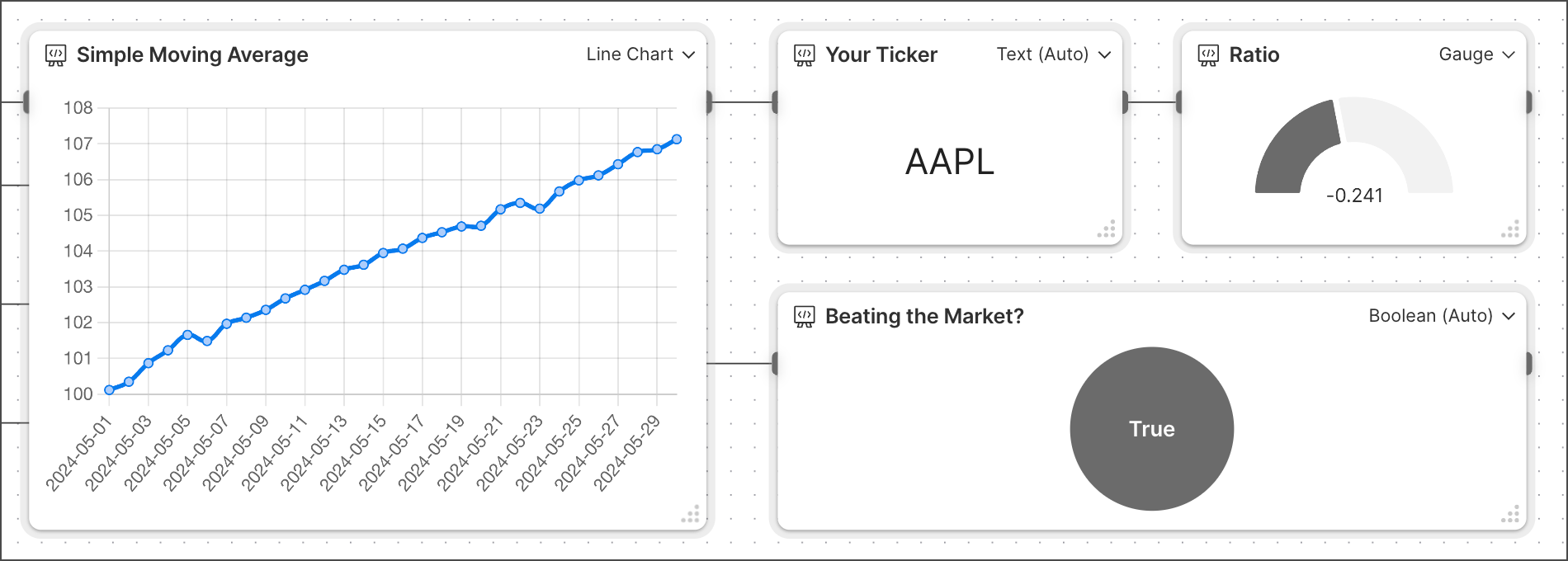

This image shows four types of output visualization types: line chart, text, gauge, and boolean. The following tutorials show how to create each of these visualization types. You can also find links to example Flows for other visualization types in the Visualization types with example Flows section.
For examples of how to use Output blocks in your Flows, see the Stock Dashboard and WordPress Sentiment Analysis Flows.
The Line Chart visualization type accepts two lists and plots them on x and y axes in a chart. The first list received is the x axis, and the second list is the y axis.
To create an example line chart Output block, do the following:
Create a new Flow, enter the data below in the Start block, and select JSON
from the dropdown list:
{
"List 1": [10, 20, 30, 40, 50, 60, 70],
"List 2": [100, 200, 300, 400]
}
Connect a Select block to the Start block and select List 1.
Connect another Select block to the Start block and select List 2.
Connect both Select blocks to a single Output block.
In the Output block's dropdown list, select Line chart and run the Flow. A line chart appears with the data on their respective axes.
When an Output block receives a string, it automatically selects the Text visualization type and shows the text.
To create an example text Output block, do the following:
Create a new Flow and add a Send request block with a GET request to postman-echo.com/get
.
Connect a Select block to the Send request block and enter body.headers.host
. This selects a string from the response.
Connect an Output block to the Select block and run the Flow. The Output block shows the body.headers.host
string from the response, which in this example is postman-echo.com
.
The Gauge visualization type shows a value's position in a range using a half-pie chart.
To create an example gauge Output block, do the following:
Create a new Flow and add a Send request block with a GET request to techcrunch.com/wp-json/wp/v2/posts
.
Connect an Evaluate block to the Send request block and enter this FQL query: $count(value1.body)
to count how many items the response body has.
Connect an Output block to the Evaluate block and select Gauge from the dropdown list.
Run the Flow. The gauge shows the number of items in the response body as the shaded part of the graph.
To set the minimum and maximum values for the gauge, select the Output block's settings icon
.
When an Output block receives a message that's either true or false, it automatically selects the Boolean visualization type, showing True or False.
To create an example boolean Output block, do the following:
Create a new Flow and add a Send request block with a GET request to postman-echo.com/get
.
Connect an Evaluate block to the Send request block and enter this FQL query: value1.http.status = 200
to check if the response has a 200
status code.
Connect an Output block to the Evaluate block and run the Flow. If the response has a 200
status code, the Output block shows a circle that says True. If not, the circle shows False.
You can select the output formats listed below from the Output block's dropdown menu. Select the Example links to open Flows in Postman that show each output format.
Text - Shows incoming information as lines of text. To adjust the text size, select the Output block, then select Additional Settings > Text size. Text example
Number - Displays an integer, if the information connected to the input is a number. Number example
Boolean - Shows a true or false value. If the value connected to the input isn't true/false or 0/1, it always displays true. Boolean example
Date & Time - If the incoming text or number can be interpreted as a date, it appears in the following format: DD MMM, YYYY HH:MM:SS am/pm
. Date & Time example
JSON - Shows the information connected to the input in JSON format, enabling you to view and select data. JSON example
Bar Chart - Shows one or more sets of information connected to the input. Bar chart example
Line Chart - Shows a line for X and Y coordinates connected to the input. Line chart example
Gauge - Shows a number when the input is a percentage. Gauge example
Table - Shows the connected input as a table with rows and columns. Table example
Markdown - Shows the text with all of the Markdown annotations displayed. Markdown example
HTML - Accepts valid HTML and renders it as formatted HTML. HTML example
URL - Shows a hyperlink to the URL that's connected to the input. URL example
Image - Shows an image from a URL that's connected to the input. Image example
Video - Shows a video from a URL that's connected to the input and enables it to be played. Video example
YouTube - Shows a YouTube video from a URL that's connected to the input and enables it to be played. YouTube example
