Create a list-based loop with the For block

You can build a flow that loops over a list. For example, you can run a flow that loops over a list of email addresses and emails each person in the list.

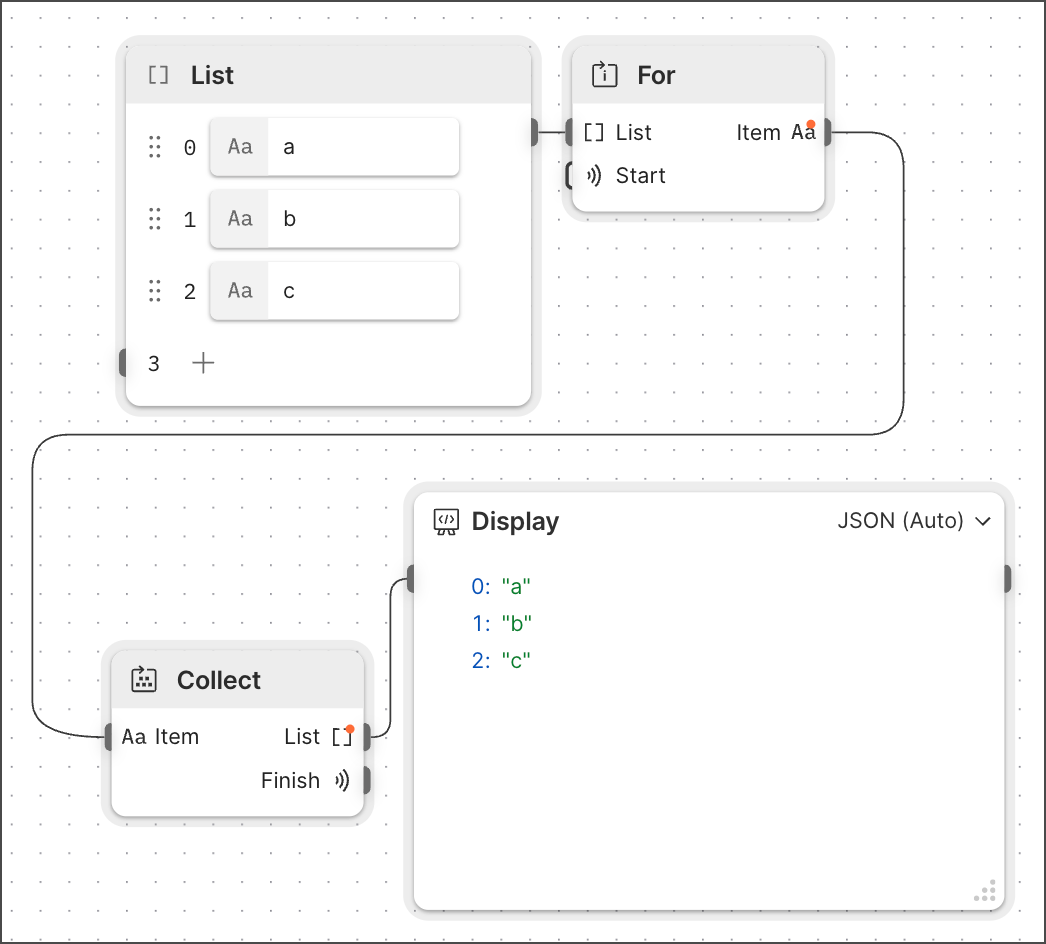

This tutorial’s goal is to teach you how to set up and use list-based loops. To achieve this goal, you’ll build a flow that iterates over the first three letters of the alphabet.

Create a new flow

You build flows in a workspace. Workspaces let you organize your API projects and collaborate with your team.

To create a new flow, do the following:

1. Choose an existing workspace or create a new one.
2. In the upper left corner, click New > Flow.

Add For and Collect blocks

With the For block, you can build a loop that iterates over a list. For example, if you want to run a loop that loops over a list of the alphabet, you connect the For block to such a list.

In the next procedure, you’ll use the List block to define this list.

To add a For block, do the following:

1. From the canvas toolbar, click Block.
2. Select For from the list. If you want to search for the block, enter “for” in the search.
3. Click the location on the canvas where you want to place the For block.
4. A Collect block automatically appears on the canvas.

Connect a List block

When you connect two blocks, you connect one block’s input to another block’s output. Inputs are on the block’s left side and outputs are on its right side.

In this tutorial, you’ll use the List block to define the list you want your loop to iterate over.

To connect a List block, do the following:

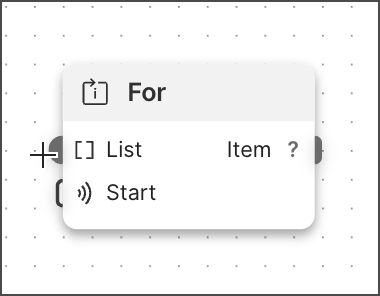

1. Hover over the For block’s List input port. The pointer changes to a crosshair.



2. Decide where on the canvas you want to place the List block and drag the port to that location.

3. Select List from the list. If you want to search for the block, enter “list” in the search.

4. Click Add data blocks and select String. If you want to search for the block, enter “string” in the search.

5. Enter the string’s value. For example, if you want to iterate over the first three letters of the alphabet, enter “a”.

6. Repeat the previous two steps until you complete your list.

You can loop over any list. For example, you can get a list from an HTTP Request block’s response or use the Evaluate block to generate a list.

As an alternative, replace the List block with an Evaluate block, switch to TypeScript (upper-right corner), and add the following code to the code editor:

1
const alphabet = []
2
3
for (let i = 0; i < 26; i++) {
4
	alphabet.push(String.fromCharCode(97 + i))
5
}
6
7
alphabet

This code creates an empty list, adds the letter “a” to it, and loops over the code until it adds all 26 letters of the alphabet to the list.

Connect to the Collect block

The Collect block saves multiple outputs to a list. In this tutorial, your loop will run three times, output three values, and use this block to save these values to a list.

To connect the Collect block, do the following:

1. Hover over the For block’s output port. The pointer changes to a crosshair.
2. Drag the For block’s output port to the Collect block’s input port.

Connect a Display block

The Display block displays incoming data, such as the Collect block’s outgoing list.

To connect a Display block, do the following:

1. Hover over the Collect block’s List output port. The pointer changes to a crosshair.
2. Decide where on the canvas you want to place the Display block and drag the port to that location.
3. Select Display from the list. If you want to search for the block, enter “display” in search.

Run the flow

From the canvas toolbar, click Run.

Congratulations! You created a list-based loop and displayed the result in a Display block.
